6k camera + Gimbal 4D!

Dji is a revelation which brought aerial filming more affordable and easier along with Gimbal new mantra for gliding movements that fascinate new generation film makers.

There has been issues of using a drone was matching with main camera, ultra wide images and low light filming.

I was thrilled to have hands on to Dji Ronin 4D, thanks to Mr. Ranjith Kumar Jayakumar and Prathiksha Cameras.

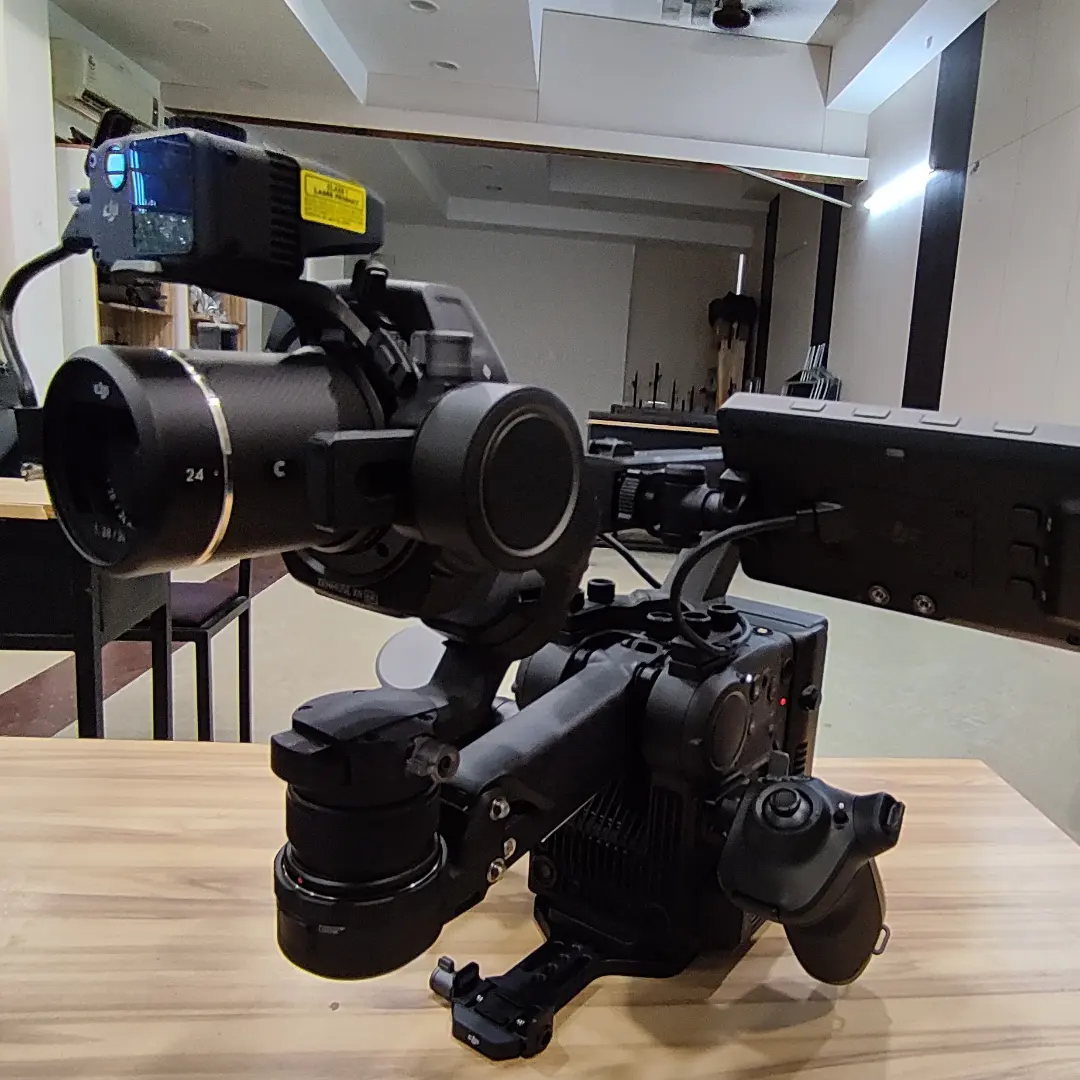

With DJI Ronin 4D a Cinema camera with 6k resolution, interchangeable lenses, a full frame Sensor combined with a 4 axis Gimbal.

DJI’s most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting. This powerful, next-generation cinema camera was designed and built to be the future of filmmaking.

Technical Specifications

Sensor : Full Frame

Video resolution: 6k

Frame rate : upto 120 fps with reduced resolution.

Dynamic Range: 15 stops
Native ISO: Dual
800/5000
Lens Mount: DL Mount
Recording Formats:
Apple ProRes 422
Apple ProRes RAW HQ/Apple ProRes RAW
H.264 (4:2:0 10-bit)
Internal ND:
2.4
2.7
Shutter: Rolling (Electronic)
Battery Mount / Type: TB50 Intelligent Battery
Media Type:
CFexpress 2.0 Type B
DJI PROSSD 1TB
USB-C SSD
Sensor: 35mm full-frame CMOS
Weight: 1.45kg

INCLUDED IN BOX
1x Zenmuse X9-6K Gimbal Camera
1x Main Body
1x LiDAR Range Finder
1x DL Mount
1x Left Hand Grip
1x Right Hand Grip
1x Top Handle
1x High-Bright Main Monitor
1x TB50 Battery Mount
1x Power Adapter
1x TB50 Charging Adapter
8x AC Power Cable
1x USB-A to USB-C Cable
1x Base Plate
1x Hand Grip Extended Control Sticks
1x 3mm Ball-End Hex Key
3x 10mm 1/4″-20 Screw
1x DL Mount Body Cap
1x Flat Head Screwdriver
1x X9 Gimbal Base Cap
1x DX Mount Body Cap
1x DX Mount Lens Cap
1x Ronin 4D Gimbal Base Cap
1x TB50 Intelligent Battery
1x LiDAR Range Finder / Focus Motor Cable

Biggest advantage is it’s leica  lenses with T2. 8 stop.

Auto focus tracking is very good even in low light, Camera part it has waveform, false color, zebra patterns for exposure assist.

With multiple external monitors we can customize separately to control  focus, gimbal operation and exposure control.

The Ronin 4D is the first professional camera system to feature an integrated gimbal stabilisation system with four-axis.

The DJI Ronin 4D has been purely born for Run N’ Gun shooting style. The Ronin 4D has two versions: a 6K Combo  and an 8K Combo, Both combos include X9 gimbal cameras with different specifications. The 6K Combo features an X9-6K Gimbal Camera that supports video recording at resolutions up to 6K and the 8K Combo features an X9-8K Gimbal Camera supporting video recording at resolutions up to 8K. Compared to the 6K Combo, the 8K Combo has an additional PROSSD 1TB, USB-C to USB-C Cable, PROSSD Mount, and other accessories.

youtube link: https://www.youtube.com/watch?v=TiVJnRXUwKw

For Demo and Enquiry contact

Prathiksha cameras- 9003096161

Mr. Ranjith Jayakumar- +91 99624 27425

Article by

CJ Rajkumar

Author/ Cinematographer
