Sony FX5 – Cine Alta features!

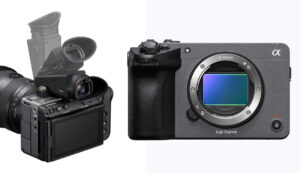

Sony FX5: Bringing CineAlta Power to a Compact Cinema Camera

The Sony FX5 marks a significant step forward in Sony’s Cinema Line, bridging the gap between compact full-frame cameras like the FX3 and flagship CineAlta systems such as the Venice 2 and Burano. By integrating advanced CineAlta technologies—including internal 16-bit RAW recording, Open Gate capture, professional monitoring tools, and an enhanced dynamic range—into a lightweight body, the FX5 is designed for modern filmmaking where mobility and uncompromised image quality go hand in hand.

For cinematographers, the FX5 is more than just a new camera; it represents a shift toward bringing high-end cinema workflows to documentaries, independent features, commercials, virtual production, and multi-camera productions.

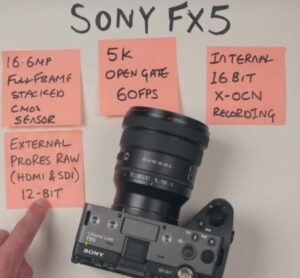

Key Technical Specifications

Feature| Specification

Sensor| 16.6MP Full-Frame Fully Stacked Exmor RS CMOS

Image Processor| BIONZ XR2 with dedicated AI Processing Unit

Base ISO| Triple Base ISO: 800 / 4,000 / 12,800

Dynamic Range| 15+ Stops (up to 16+ Stops in Dual Gain Mode)

Internal RAW| 16-bit X-OCN LT with new C1 & C2 compression options

Recording Formats| 5K Open Gate (3:2) up to 60p (120p via future firmware), 4K up to 120p Full Frame, 4K up to 240p in Super 35 Crop, Full HD up to 240p

Monitoring Tools| Waveform, False Colour, Vectorscope, Focus Map, Zebra, Peaking

User Interface| CineAlta “Big 6” Menu System

Display| 3.5-inch Four-axis Multi-angle LCD with optional OLED EVF

Audio| Optional XLR Handle with 32-bit Float Audio Recording

Media| Dual CFexpress Type-A / SDXC Card Slots

Internal 16-bit X-OCN RAW Recording

One of the FX5’s most significant innovations is the inclusion of internal 16-bit X-OCN RAW recording.

Until now, Sony’s X-OCN workflow was largely limited to premium CineAlta cameras such as the Venice and Burano, often requiring dedicated external recorders. By bringing X-OCN recording directly into a compact Cinema Line camera, Sony enables cinematographers to enjoy the same high-end post-production flexibility in a far more portable system.

The addition of C1 and C2 compressed recording options further improves workflow efficiency by reducing storage requirements while retaining the grading latitude that X-OCN is known for.

5K Open Gate Recording

The introduction of 5K Open Gate (3:2) recording is another welcome addition.

Using the entire sensor height provides several advantages:

– Full support for 2x, 1.8x and 1.5x anamorphic lenses.

– Greater flexibility during post-production reframing.

– Simultaneous delivery for theatrical widescreen, television, and vertical social media formats from a single capture.

– Better utilization of the sensor without sacrificing image quality.

For cinematographers working with anamorphic optics or multiple delivery platforms, Open Gate recording greatly expands creative possibilities.

Triple Base ISO and Dual Gain Architecture

Instead of the conventional Dual Native ISO system, Sony introduces Triple Base ISO (800, 4000 and 12800).

Each base sensitivity is optimized to deliver the lowest possible noise for different lighting conditions, whether shooting in bright daylight, practical interiors or extremely low-light environments.

When combined with Sony’s selectable Dual Gain Mode, the FX5 achieves impressive highlight retention and cleaner shadow reproduction, delivering up to 16 stops of dynamic range under optimal conditions.

This gives cinematographers greater exposure latitude while maintaining Sony’s well-known highlight roll-off characteristics.

Professional Monitoring Without External Accessories

The FX5 incorporates monitoring tools traditionally found in high-end cinema cameras.

These include:

– Waveform Monitor

– False Colour

– Vectorscope

– Focus Map

– Zebra

– Peaking

These built-in tools allow accurate exposure and focus monitoring without relying on external monitors, making the camera particularly attractive for handheld, documentary and gimbal applications.

The inclusion of the familiar CineAlta “Big 6” menu system also provides a consistent operating experience for crews already working with Venice or Burano cameras.

32-bit Float Audio Recording

When equipped with the optional XLR top handle, the FX5 supports 32-bit float audio recording.

This significantly reduces the risk of clipped or distorted audio caused by incorrect gain settings, making the camera particularly valuable for documentary filmmakers, news crews and solo operators working in unpredictable recording environments.

Practical Benefits for Cinematographers

1. CineAlta Workflows in a Compact Body

The FX5 shares Sony’s professional colour science, gamma curves and X-OCN recording format with higher-end CineAlta cameras. This allows it to integrate seamlessly into productions using Venice 2 or Burano as the primary camera while serving as an ideal B-camera or C-camera for drones, gimbals, vehicle rigs and confined shooting locations.

2. Better Support for Anamorphic Cinematography

The addition of Open Gate recording and in-camera de-squeeze monitoring finally makes Sony’s compact Cinema Line more attractive for anamorphic cinematography. Filmmakers can now pair vintage and modern anamorphic lenses with a lightweight body while utilizing the full sensor area.

3. Faster Documentary Production

The combination of internal RAW, professional monitoring tools, AI-powered autofocus and optional 32-bit float audio enables single-camera operators to work more efficiently without relying heavily on external accessories.

4. Virtual Production and LED Volume Compatibility

The fully stacked sensor provides fast readout speeds, helping reduce rolling shutter artefacts during rapid camera movement. Together with accurate frame synchronization and AI-assisted subject tracking, the FX5 is well suited for LED volume productions, virtual production environments and high-speed action photography.

Conclusion

With the FX5, Sony has successfully combined the portability of the Cinema Line with many of the imaging technologies previously reserved for its flagship CineAlta cameras.

Features such as internal 16-bit X-OCN recording, 5K Open Gate capture, Triple Base ISO, professional monitoring tools, CineAlta menus, and optional 32-bit float audio make it one of the most capable compact cinema cameras introduced in recent years.

For cinematographers, the FX5 is not merely an incremental update—it represents a new generation of compact cinema cameras capable of delivering professional workflows without compromising mobility. Whether used as a primary camera for independent productions or as a companion to Venice 2 and Burano on larger productions, the FX5 demonstrates how advanced cinema technology is becoming increasingly accessible to filmmakers at every level.

Article by

CJ Rajkumar

Author/ Cinematographer
